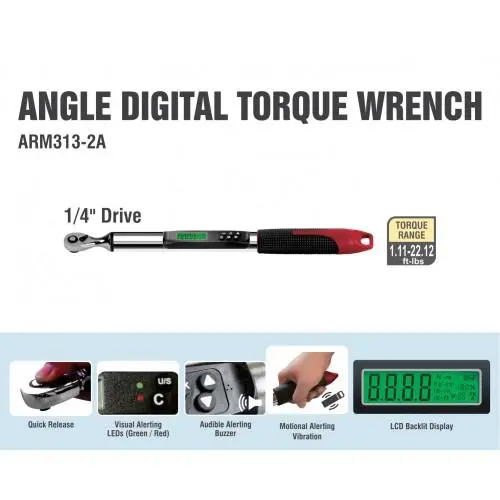

Description
- Standard functions: torque setting, measurement setting, mode setting.
- Operation in both clockwise and counter-clockwise directions.
- LCD display shows kg-cm, N-m, in-lb, ft-lb measurements.
- Audible torque confirmation by means of buzzer.
- Easy to set up Peak or Trace modes.
- Anti-slip soft grip.
Specifications
|
Model Number |
ARM313-2A |
|
Drive |
1/4″ Square |
|
Gear Teeth |
72 |
|
Length |
16-1/8″ (410 mm) |
|
Accuracy * |
CW ± 1.5%; CCW ± 2.5% |
|
Measured Torque Range |
1.11 – 22.12 ft-lbs (1.5 – 30 Nm) |
|
Resolution |
1 kg-cm, 0.1 N-m, 1 in-lb, 0.1 ft-lb |
|
Auto Shut-Off |
After 2 Minutes of No Use |
|
Vibration Warning |
Yes |
|
Operation Temperature |
-10 – 60°C |
|
Storage Temperature |
-20 – 70°C |
|
Battery |
AAA Alkaline Battery x 2 (Not included) |
|
Battery life |
110 Hours |
|
Tool Weight |
1.68 lbs (0.76 kg) |
| EAN | 4716872175765 |
* Accuracy Rating applies from 20% to max torque. Example: Torque range with max. 100 ft-lbs will have stated accuracy rating between 20~100 ft-lbs
What’s in the Box
(1) – 1/4″ ” Digital Torque Wrench
