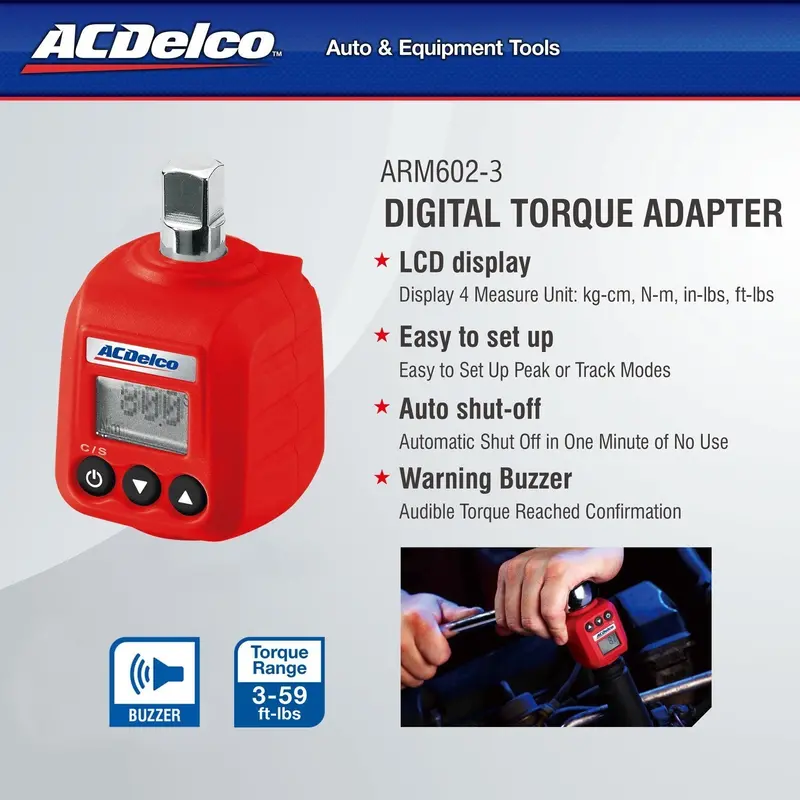

Description
- Static torque measurement.
- Standard functions: torque setting, measurement setting, mode setting
- Operation in both clockwise and counter-clockwise directions.
- LCD display shows N-m (or kg-cm, in-lb, ft-lb) measurements.
- Audible torque confirmation by means of buzzer.

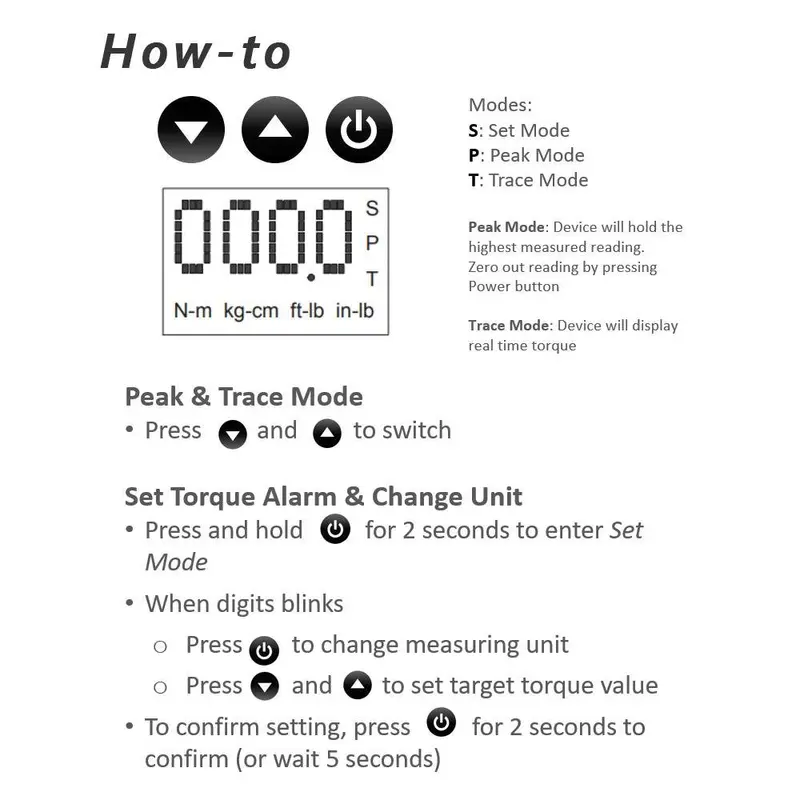

- Easy to set up Set, Peak or Trace modes.
Specifications
|
Model Number |
ARM602-34A |
|
Drive |
3/8″ Square / 1/2″ Square |
|
Accuracy * |
CW ± 2%; CCW ± 3% |
|
Measured Torque Range |
5.9-59 ft-lbs (8-80 Nm) / 25-250 ft-lbs (34-340Nm) |
|
Resolution |
1 kg-cm, 0.1 N-m, 1 in-lb, 0.1 ft-lb |
|
Auto Shut-Off |
After 1 Minute of No Use |
|
Operation Temperature |
0-50°C |
|
Storage Temperature |
-10-60°C |
|
Battery |
2 x CR2032 (included) |
|
Tool Weight |
0.31 lbs (0.14 kg) / 0.44 lbs (0.20 kg) |
| EAN | 4716872181490 |
* Accuracy Rating applies from 20% to max torque. Example: Torque range with max. 100 ft-lbs will have stated accuracy rating between 20~100 ft-lbs
What’s in the Box
(1) – 1/2″ Digital Torque Adapter
(1) – 3/8″ Digital Torque Adapter
