Description

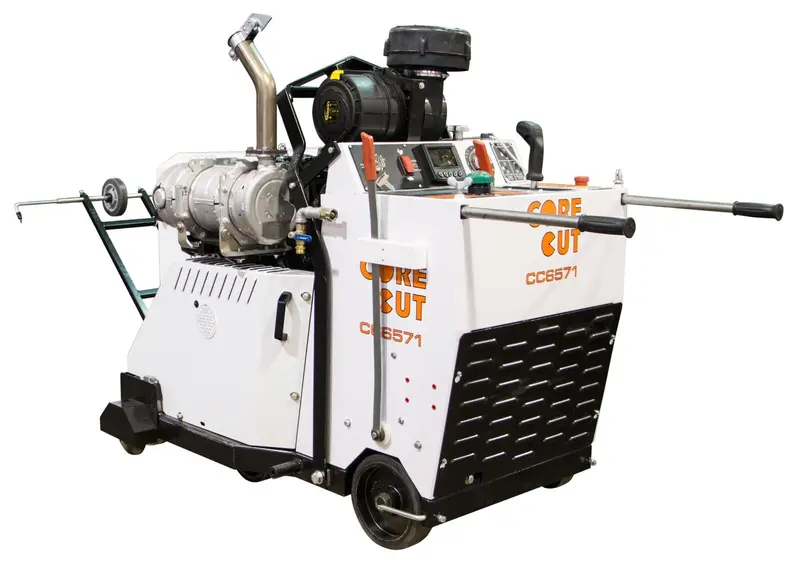

DIAMOND PRODUCTS CC6571D CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
FEATURES & BENEFITS
- Tier 4 Final liquid-cooled engine allows for a smoother running, longer lasting saw with higher productivity
- Strongest frame on the market
- Less rear weight for easy maneuvering and reduced operator fatigue
- Oil bath blade shaft comes standard
- One-hand sawing control and parking brake
- Fits through a 36” wide door frame (when guards removed)
- Quick release blade shaft / flange
- Blade shaft tachometer – where its needed – not at the engine, giving you true blade speed

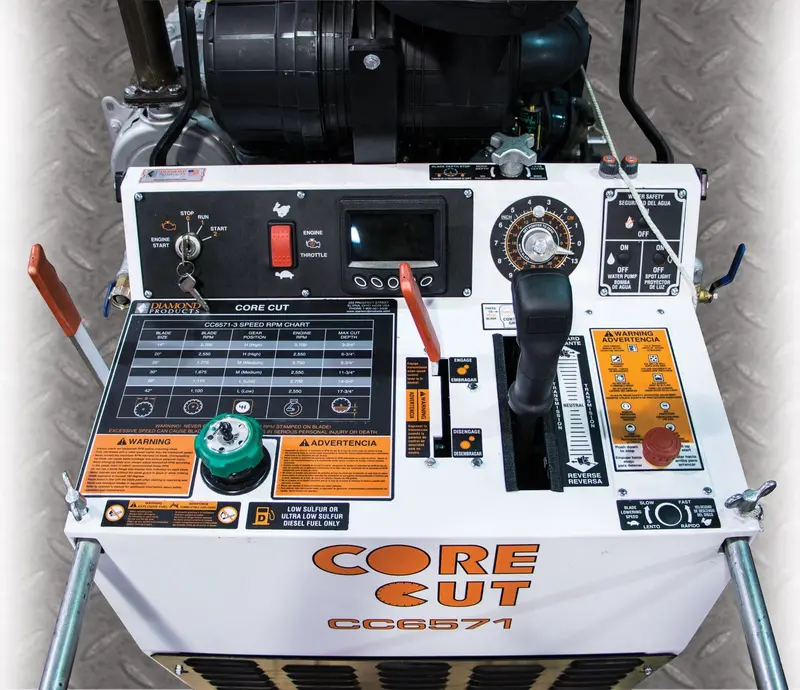

- Digital display control panel provides simple operation and complete access to diagnostic information
CC 6571D SPECIFICATIONS
| Horsepower | 71 hp |
| Motor | Kubota Turbo |
| Max depth of cut with 42″ blade | 17-3/4″ |
| Bladeshaft drive | 10 belts |
| Bladeshaft diameter | 2″ |
| Weight, lbs | 1,855 |
