Description

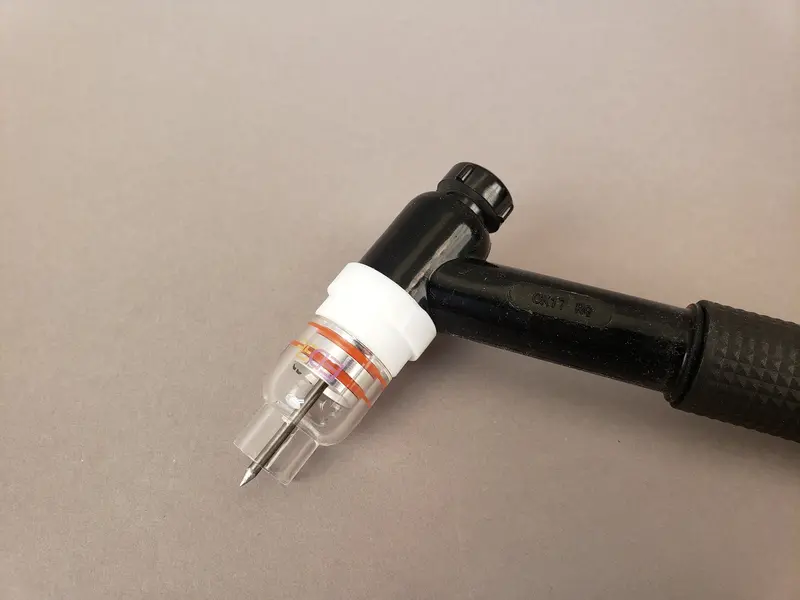

EDGE® #4 EXP mini collet body Pyrex cup kit for 17, 18, and 26 Series TIG torches. Includes the following parts:
| Part# | Description | Quantity |
| CB920-P4 | EDGE® #4 Collet Body Pyrex Cup | 1 |
| CB920-A | Adapter | 1 |
| PYR17SC116 | 1/16″ Wedge Collet, Short | 1 |
| 4CB116 | 1/16″ Stubby Collet Body | 1 |
| 13N08 | #4 Alumina Cup | 1 |
| 300S | Short Back Cap | 1 |
| CB920-OR | Adapter O-Ring | 2 |
EDGE Welding Supply Pyrex Cup Recommendations:
♦ The EDGE adapter and EDGE cup must be fully seated onto the Teflon heat/thermal shield.
♦ For use with DC only and up to 180A unless using pulse settings.
♦ Best used with metals such as Stainless Steel, Titanium, and Inconel.
♦ The #10 EDGE Pyrex cup can be used to weld aluminum based material, but only in short runs.
♦ Can be used with any size and type of tungsten.
♦ The ‘walking the cup’ technique is not recommended with Pyrex cups (walking the cup causes premature cup failure).
