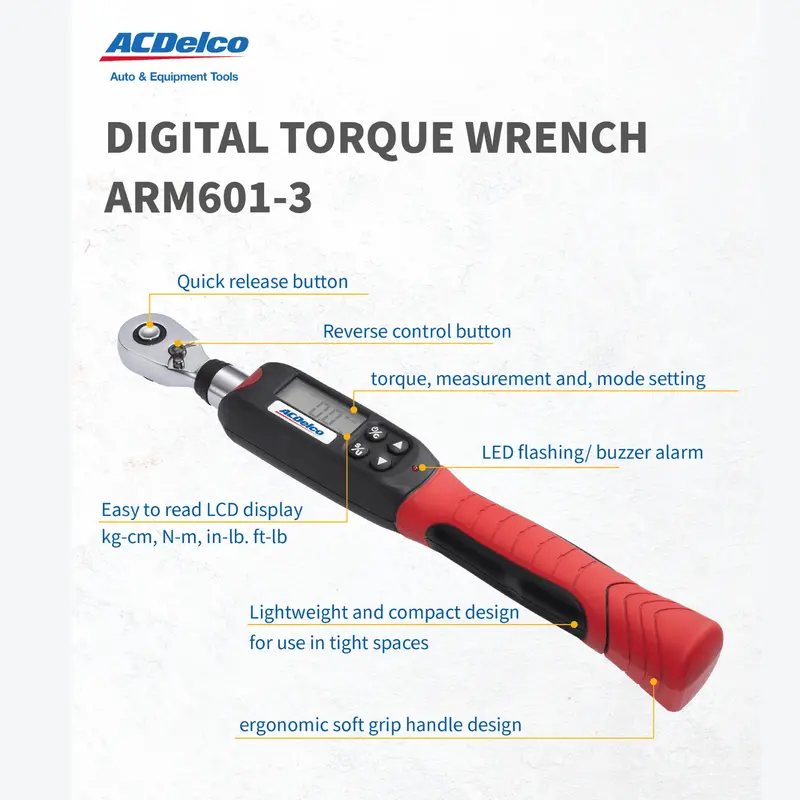

Description

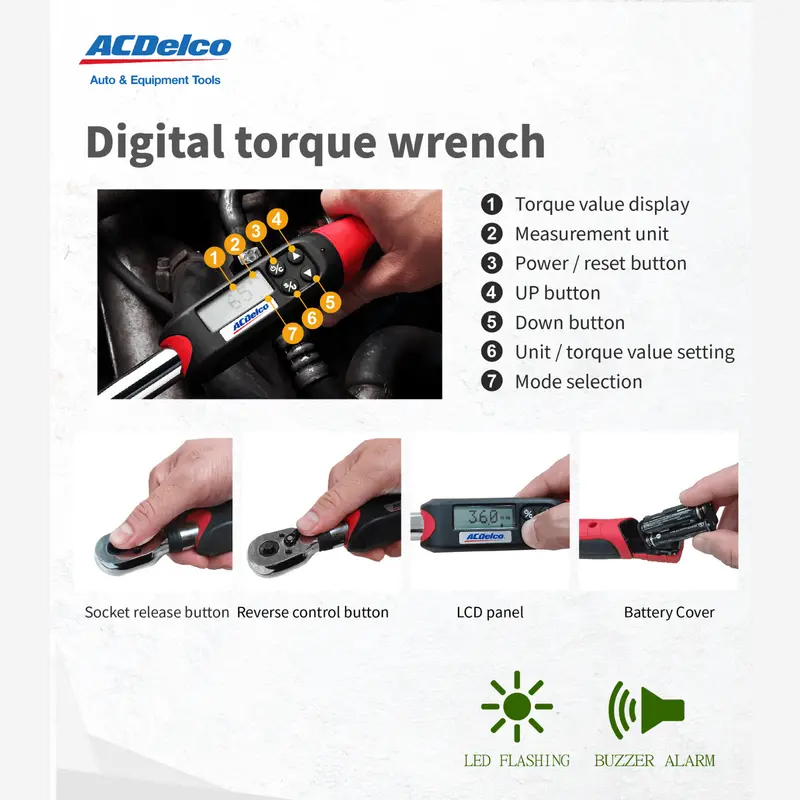

- Standard functions: torque setting, measurement setting, mode setting.
- Operation in both clockwise and counter-clockwise directions.
- LCD display shows kg-cm, N-m, in-lb, ft-lb measurements.
- Audible torque confirmation by means of buzzer.
- Easy to set up Peak or Trace modes.
- Anti-slip soft grip.

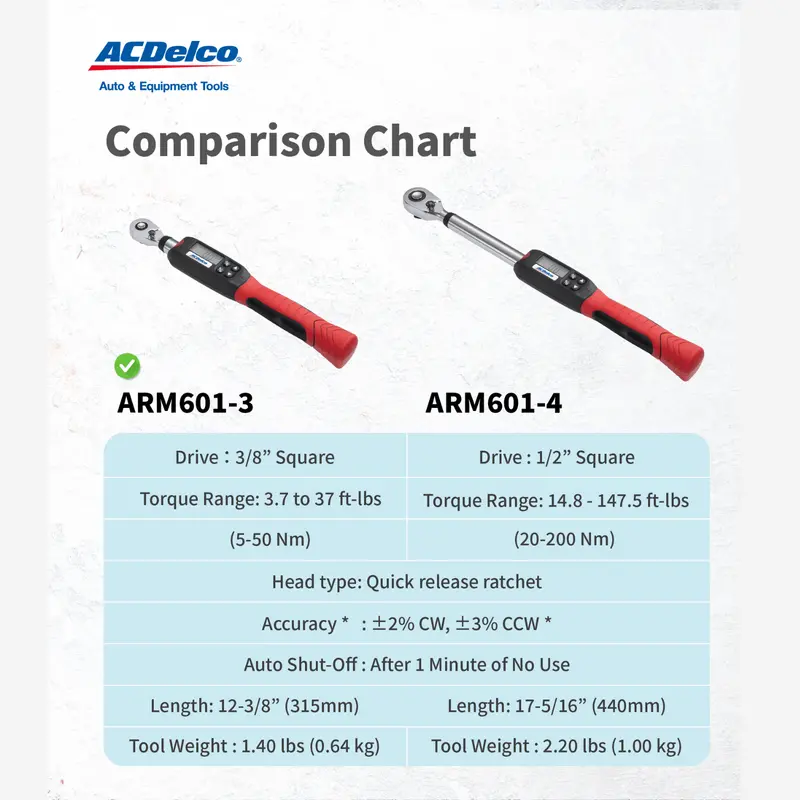

Specifications
|
Model Number |
ARM601-3 |
|
Drive |
3/8″ Square |
|
Head Type |
Quick Release Ratchet |
|
Length |
12-3/8″ (315 mm) |
|
Accuracy * |
CW ± 2%; CCW ± 3% |
|
Measured Torque Range |
3.7-37 ft-lbs (5-50 Nm) |
|
Resolution |
1 kg-cm, 0.1 N-m, 1 in-lb, 0.1 ft-lb |
|
Auto Shut-Off |
After 1 Minute of No Use |
|
Operation Temperature |
0-50°C |
|
Storage Temperature |
-10~60°C |
|
Battery |
AAA Alkaline Battery x 4 (Not included) |
|
Tool Weight |
1.40 lbs (0.64 kg) |
| EAN | 4716872170975 |
* Accuracy Rating applies from 20% to max torque. Example: Torque range with max. 100 ft-lbs will have stated accuracy rating between 20~100 ft-lbs

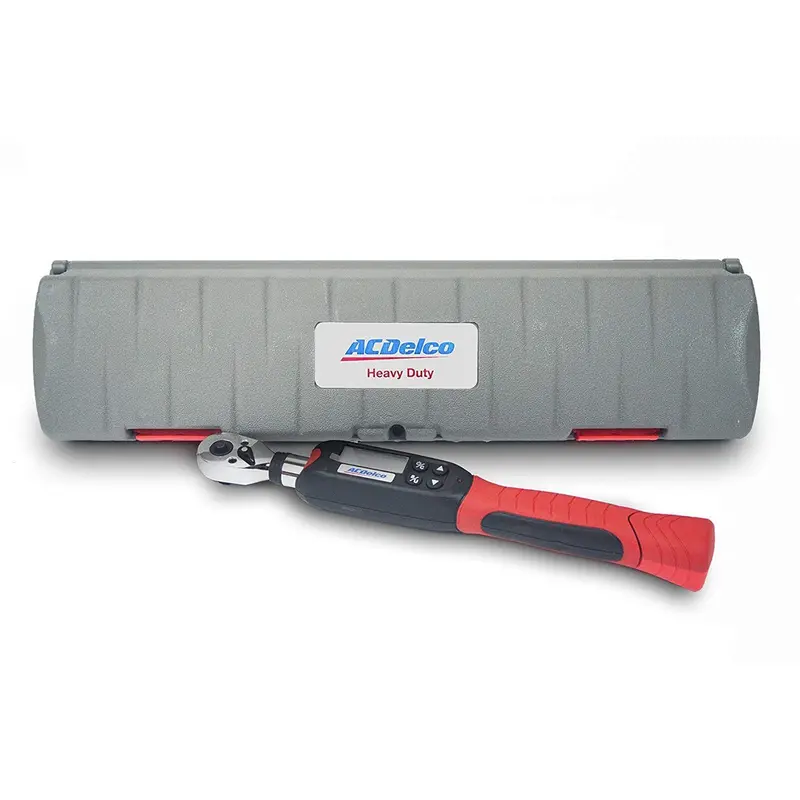

What’s in the Box
(1) – 3/8″ Digital Torque Wrench
